Quick Definition of Zero Leakage
Short Engineering Definition
Zero leakage refers to a valve seating performance condition in which no visible or measurable fluid — liquid or gas — passes through the closed valve seat during pressure testing conducted under the conditions and for the duration specified by an applicable testing standard. In engineering practice, “zero leakage” is a defined test outcome rather than an absolute physical state: it means that no detectable fluid passage occurs under the specific test pressure, test medium, test duration, and detection method prescribed by the relevant standard — most commonly API 598 seat leakage Class VI, where no gas bubbles are observed at the downstream test connection during the defined test period. Zero leakage in this sense is achieved when a soft seat material — PTFE, RPTFE, or an elastomer — conforms sufficiently to the seating surface to close all potential leakage paths under the applied seat contact force and test conditions. It indicates complete and verified shutoff under standardized conditions, not an absolute guarantee of zero molecular leakage under all possible operating conditions throughout the valve’s service life. For a complete library of industrial valve engineering definitions, visit the Industrial Valve Engineering FAQ.
Technical Explanation of Zero Leakage
Engineering Background and Testing Context
The engineering concept of zero leakage derives directly from the leakage classification systems established in valve seat performance testing standards, which recognize that different valve types, seat materials, and service applications have legitimately different achievable and acceptable seat leakage rates — and that requiring zero leakage universally would be neither technically achievable nor economically justified for all valve applications. The primary testing standard governing leakage classification for industrial valves is API 598, which defines leakage classes I through VI with progressively tighter acceptance criteria. Class VI — the tightest classification — specifies zero allowable gas bubbles during an air or nitrogen seat test at rated pressure for a defined test duration, and it is this Class VI criterion that corresponds to what is commercially described as “zero leakage” for soft-seated valves.
The standard API 598 gas seat leakage test procedure applies compressed air or nitrogen to the upstream side of the closed valve at the specified test pressure, monitors the downstream connection — typically submerged in water — for the defined test duration (15 seconds for most valve sizes, extended for larger bores), and records whether any gas bubbles emerge. If no bubbles appear during the full test duration, the valve meets the Class VI zero leakage acceptance criterion. The physical mechanism that enables zero leakage in soft-seated designs is elastic and plastic deformation of the seat material under contact load — PTFE or elastomer seats deform under the ball or disc contact force to conform precisely to the seating surface geometry, filling microscopic surface irregularities that would otherwise constitute leakage paths. This conformability is the fundamental reason why soft-seated valves achieve zero leakage while metal-to-metal seated valves typically do not under equivalent conditions.
Valve types most consistently capable of achieving zero leakage in standard industrial service include soft-seated ball valves with PTFE or RPTFE seats, resilient-seated butterfly valves with EPDM or NBR seat liners, and soft-seated plug valves with PTFE sleeves. For the complete range of industrial valve types and their typical sealing performance capabilities, see the Valve Types Collection. It is important to recognize that zero leakage as a test result does not mean the valve is hermetically sealed at the molecular level, nor does it guarantee that the same sealing performance will be maintained throughout the valve’s service life as seat materials age, creep, or are subjected to elevated temperatures beyond their rated range.
Where Is Zero Leakage Used in Valve Engineering?
Application in Industrial Valves
Zero leakage seat performance is specified in applications where the process fluid characteristics — toxicity, flammability, environmental harm, high value, or safety criticality — make any detectable seat leakage unacceptable from safety, environmental, regulatory, or economic perspectives. Key application categories include:
- Hazardous fluid isolation: Block valves on process lines carrying toxic gases (hydrogen sulfide, chlorine, ammonia, phosgene), toxic liquids (benzene, vinyl chloride monomer), and highly reactive chemicals where seat leakage into a downstream isolated section during maintenance creates immediate worker safety risk and regulatory exposure
- Environmental protection: Isolation valves on volatile organic compound (VOC) streams at chemical and petrochemical plants where seat leakage contributes to fugitive emissions, creating regulatory non-compliance under EPA Clean Air Act or EU Industrial Emissions Directive permit conditions
- Safety instrumented systems: Emergency shutdown valves (ESDVs) classified as SIL safety layers in safety instrumented systems per IEC 61511, where the valve’s function is to provide positive isolation of a hazardous energy source on demand — any seat leakage in the closed position reduces the safety integrity of the isolation barrier
- Gas transmission pipelines: Mainline and station isolation valves where natural gas seat leakage represents both a safety hazard and a commercial gas loss — zero leakage specification in gas pipeline service reduces both flammable gas accumulation risk and continuous revenue loss through leaking seats in normally closed valves
- High-purity process systems: Product isolation valves in pharmaceutical, semiconductor, and food processing applications where any backward contamination through a leaking seat would degrade product quality or sterility
For a sector-by-sector overview of where zero leakage isolation requirements are most prevalent across industrial applications, see the Industry Applications Collection. The oil and gas industry context for zero leakage specification — including the specific valve service positions where Class VI performance is mandated by project specifications — is developed in the Oil and Gas Valve Guide. In toxic and flammable service systems, the commercial and safety consequences of specifying a lower leakage class than the service requires — and subsequently experiencing in-service seat leakage — can be catastrophically disproportionate to the modest cost premium of a correctly specified zero leakage soft-seated design.
How Zero Leakage Affects Valve Selection
Impact on Engineering Decision-Making
Incorporating a zero leakage requirement into a valve specification has direct and specific consequences for seat material selection, valve design type, factory testing requirements, and the long-term maintenance strategy for the specified valve position:

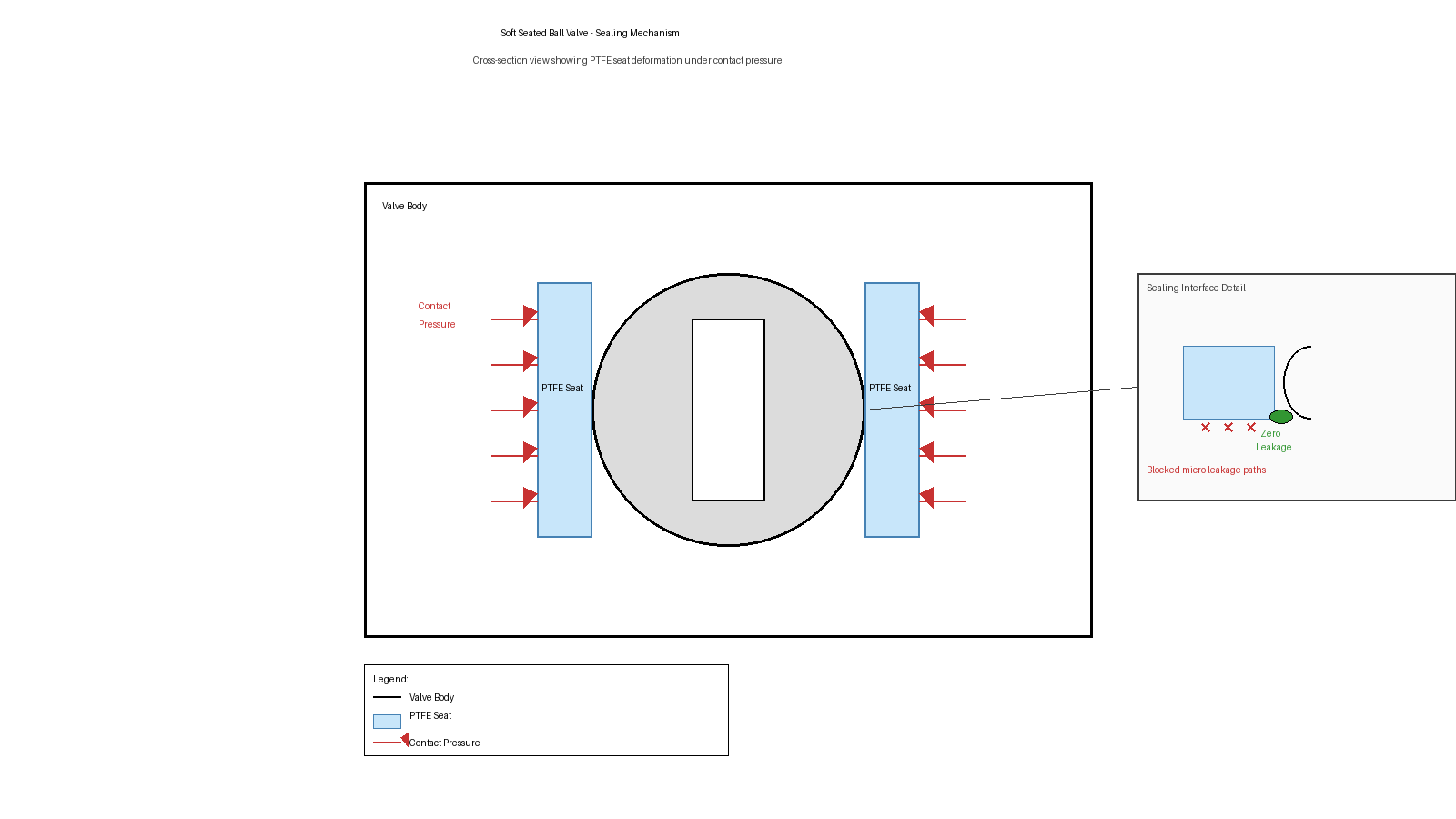

- Seat material selection: Zero leakage requires a compressible or conformable seat material capable of closing microscopic leakage paths under contact load. PTFE is the standard choice for most chemical, gas, and process service applications at ambient to 200°C; RPTFE (reinforced with glass or carbon fiber) provides improved creep resistance under sustained high contact loads at elevated temperature; EPDM, NBR, and HNBR elastomers are used in water, steam, and general utility service. All soft seat materials have defined maximum service temperature limits — operating above these limits causes seat deformation, hardening, or softening that destroys zero leakage capability
- Valve design type: Zero leakage specification constrains selection to valve types capable of accommodating soft seat designs. Soft-seated ball valves, resilient-seated butterfly valves, and sleeved plug valves are the primary candidates; conventional metal-seated gate and globe valves are excluded from zero leakage service unless specially designed and qualified with metal seat lapping to Class VI acceptance criteria, which is uncommon and expensive. Specifying zero leakage implicitly excludes conventional metal-seated gate valves from consideration and should be reviewed if gate valve design is desired for other functional reasons
- Testing requirements: Zero leakage specification requires that the factory acceptance test protocol explicitly includes API 598 Class VI gas seat leakage testing — not only hydrostatic seat testing, which uses water at lower sensitivity and is associated with Class IV or lower acceptance criteria. The procurement specification must state “API 598 Class VI gas seat leakage test” to ensure the correct test is performed and documented in the valve quality record
- Pressure class specification: Zero leakage is independent of pressure class — it can be specified at Class 150 or Class 1500 without changing the leakage class requirement. However, at higher pressure classes, the seat contact load required to maintain zero leakage increases, and the selection of seat material must account for the compressive creep behavior of the soft seat under sustained high contact load at the design pressure and temperature
The trade-off between soft seats (zero leakage capability, temperature-limited) and metal seats (limited leakage at high temperature, fire-safe by design) is analyzed in detail in Metal Seat vs Soft Seat. The complete engineering decision framework integrating leakage class with valve type, pressure class, and material selection is provided in How to Select Industrial Valve.
Related Standards and Compliance
Governing Standards
Zero leakage performance is defined and verified within a framework of testing and design standards that engineers must correctly reference in procurement specifications:
- API 598 — the primary valve testing standard defining the Class VI zero leakage acceptance criterion for gas seat leakage testing; specifies test medium (air or inert gas), test pressure (rated working pressure), test duration (15 seconds for most sizes), and acceptance criterion (zero visible bubbles) for the tightest leakage class applicable to industrial valves. Engineers must reference API 598 Class VI explicitly in valve purchase specifications — stating only “zero leakage required” without a standard reference provides insufficient contractual or inspection basis for rejecting valves that fail to achieve the intended performance
- API 6D — the pipeline valve standard that references API 598 leakage testing requirements and adds pipeline-specific seat testing provisions including independent upstream and downstream seat testing and body cavity relief testing for DBB designs; zero leakage (Class VI) must be specified as an explicit requirement within the API 6D procurement framework — the standard does not mandate Class VI by default and lower leakage classes are permissible for metal-seated pipeline valves
- ASME B16.34 — governs the structural pressure-temperature rating of valve bodies, providing the design framework within which leakage class requirements are applied; ASME B16.34 does not independently specify seat leakage acceptance criteria, reinforcing that pressure class (structural) and leakage class (sealing performance) are always complementary and independently specified requirements
Zero leakage acceptance criteria vary between standards: ISO 5208 — the international standard for industrial valve pressure testing — defines leakage rates A through G, with Rate A (no visible leakage) corresponding most closely to API 598 Class VI. Projects specifying ISO 5208 should reference Rate A for zero leakage equivalence. Engineers must always verify which testing standard and which specific leakage class within that standard applies to the project, rather than relying on informal “zero leakage” language in specifications that may be interpreted differently by different manufacturers and inspection authorities.
Common Misunderstandings About Zero Leakage
Frequently Confused Concepts
Several persistent misunderstandings about zero leakage cause specification ambiguity and inspection disputes in valve engineering practice:
- Zero leakage is NOT exactly the same as bubble tight, although the terms are closely related. Both refer to the absence of detectable gas leakage during a gas seat test, and both correspond to API 598 Class VI acceptance criteria — in this specific technical sense, zero leakage and bubble tight describe the same test outcome. However, “bubble tight” is a more precisely defined term, specifically describing the visual absence of gas bubbles during a gas leak test per API 598, while “zero leakage” is a broader commercial term that may be applied to liquid seat tests, different standards, or different detection sensitivities depending on context. To avoid ambiguity, procurement specifications should always state the applicable standard and leakage class rather than using either informal term alone. For the complete bubble tight definition, see What Does Bubble Tight Mean?
- Zero leakage is NOT determined by pressure class. Pressure class (Class 150 through Class 2500 per ASME B16.34) defines the structural pressure-containing capability of the valve body — it has no relationship to the seat sealing performance of the closed valve. A Class 150 soft-seated ball valve can achieve zero leakage Class VI; a Class 2500 metal-seated gate valve may have Class II leakage by design. These two performance dimensions are always independent and must be specified separately in engineering documents. For the full pressure class definition and its structural engineering significance, see What Is Class 1500?
- Zero leakage does NOT apply equally to all valve types. Metal-seated gate valves, globe valves, and most check valve designs are inherently not capable of achieving API 598 Class VI zero leakage — their metal-to-metal seat geometry cannot conform sufficiently to close all leakage paths, and their design intent accommodates Class II or Class III leakage rates. Specifying zero leakage for a metal-seated gate valve creates a technically impossible requirement that will generate inspection failure and procurement disputes. Zero leakage specification must be matched to valve types that are capable of delivering it.
- Zero leakage as a test result does NOT guarantee zero leakage throughout service life. A valve that passes the API 598 Class VI factory acceptance test demonstrates zero leakage at ambient temperature under clean test conditions immediately after manufacture. In service, seat degradation through thermal cycling, creep, wear, and chemical attack will progressively erode sealing performance. Maintenance programs for zero-leakage-critical valves must include periodic seat leakage verification testing to confirm that in-service performance continues to meet the required standard.
Practical Engineering Example
Example Scenario in Chemical Plant Isolation
A chemical processing plant operates a toxic solvent transfer line carrying a substance with an occupational exposure limit (OEL) of 1 ppm airborne concentration — a level at which even very small vapor releases into the work environment create immediate health risk. The engineering team specifies isolation valves for this line and includes the following zero leakage requirements in the valve purchase specification:
- Valve type: DN50 Class 300 soft-seated ball valve, ASTM A351 CF8M stainless steel body, PTFE seats
- Leakage test: API 598 Class VI gas seat leakage test with air at rated working pressure — zero visible bubbles required during 15-second test duration for each seat independently
- Documentation: Pneumatic seat leakage test records provided as part of the valve quality dossier, with inspector witness stamp confirming zero leakage test pass
All supplied valves pass the API 598 Class VI test at the manufacturer’s facility with a third-party inspector present. The test records are included in the valve quality data packages reviewed and accepted before valve release for shipment to site. During the first scheduled plant turnaround 18 months after commissioning, the maintenance team conducts in-line seat leakage verification on all critical toxic service block valves as part of the plant’s safety management system inspection program. Two valves show marginal seat leakage above the Class VI criterion due to PTFE seat creep at sustained contact load — both are flagged for seat replacement before the next operating period. Had the specification originally allowed Class III metal seat leakage instead of Class VI zero leakage, the ongoing seat leakage in the closed position would have created continuous low-level solvent vapor emission in the valve vicinity during normal plant operation, potentially exposing maintenance and operations personnel to toxic vapor concentrations above the OEL. The broader chemical plant valve selection context, including seat material selection for toxic service applications, is detailed in the Chemical Plant Valve Selection guide.
Summary — Why Zero Leakage Matters in Valve Engineering
Key Takeaways
Zero leakage describes a valve seat performance condition — verified by the absence of measurable fluid passage during standardized testing per API 598 Class VI or equivalent — that represents the tightest achievable seat isolation performance for industrial valves. It is primarily delivered by soft-seated valve designs and is essential in applications handling toxic, flammable, environmentally hazardous, or high-purity fluids where any detectable seat leakage creates unacceptable safety, regulatory, or operational consequences. Correct zero leakage specification requires precision: it must reference an applicable standard and specific leakage class, be matched to a valve type capable of delivering the required performance, and be supported by a factory acceptance test protocol that explicitly verifies and documents the zero leakage outcome.
- Zero leakage = no detectable fluid passage through closed seat under API 598 Class VI gas test conditions
- Achieved primarily by PTFE, RPTFE, or elastomer soft-seated ball, butterfly, and plug valve designs
- Independent of pressure class — zero leakage describes seat performance, not body structural strength
- Closely related to but technically distinct from “bubble tight” — both refer to API 598 Class VI gas seat test outcome
- Does not apply to conventional metal-seated gate or globe valves — which are designed to permissible Class II or III leakage rates
- Must be explicitly specified with standard reference (API 598 Class VI) in procurement documents — informal “zero leakage” language is insufficient for contract enforcement
- Factory test result does not guarantee in-service performance throughout valve life — periodic in-service seat leakage verification is required for safety-critical applications
For additional definitions of related valve engineering terms — including bubble tight, pressure class, API 6D pipeline valve requirements, metal seat versus soft seat selection, and the complete range of valve testing and design standards — visit the Industrial Valve Engineering FAQ.
